Common Industrial Protocol (CIP™) Security is an open-standard secure communication protocol developed by ODVA for EtherNet/IP™ communications, providing the final layer of defense against malicious communication attacks commonly carried out over large organizational networks.

CIP Security™ can play an important part of a defense-in-depth strategy by:

Using Transport Layer Security (TLS) and Datagram Transport Layer Security (DTLS) cryptographic protocols, for secure transport of EtherNet/IP traffic
Using keyed-Hashed Message Authentication Code (HMAC), for data integrity and message authenticity
Using X.509v3 digital certificates, for cryptographically secured identities to devices

Video Player

00:00

Use Up/Down Arrow keys to increase or decrease volume.

Video

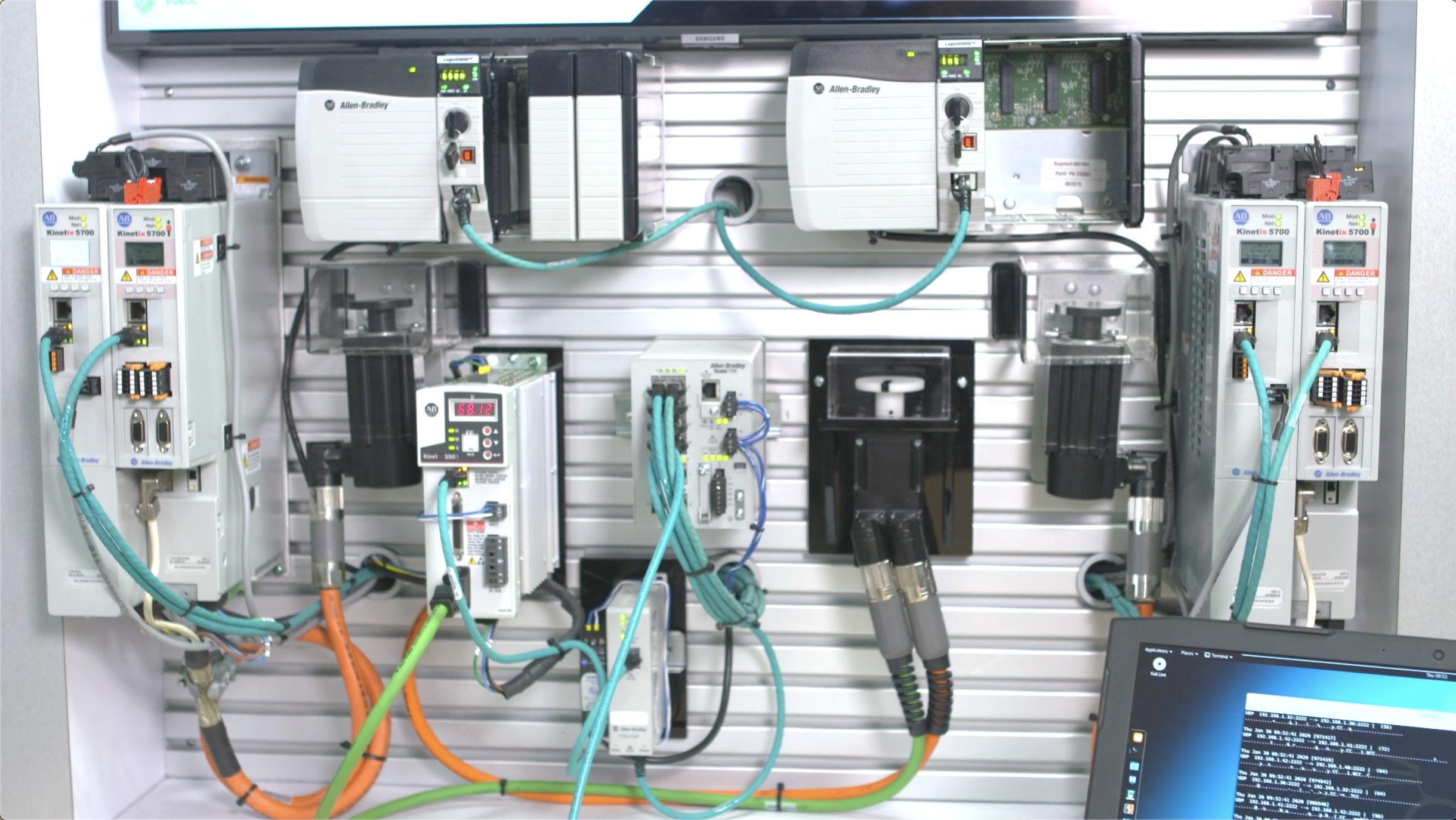

CIP Security Demonstration

Watch this demonstration of how CIP Security interrupts Man in the Middle (MitM) attacks to protect physical assets.

Legacy Systems Updated with CIP Security

The Power of CIP Security Proxy for Legacy Devices

Rockwell Automation continually builds on our portfolio of security enabled products. Yet many industrial organizations still depend on legacy products that can’t be updated easily, due to age or logistical challenges.

To facilitate the protection of these systems, we’ve released a new product called Bulletin 1783 CIP Security™ Proxy. Placed in front of legacy devices, it secures communications like TLS and DTLS on behalf of the devices it’s protecting, for two immense benefits – speeding protection to vulnerable legacy systems, while not requiring any update to the applications running on the older systems.

With the CIP Security Proxy, you now have the power to update the security of your critical systems, regardless of their age.

Secure and Reliable Converged Plant-wide Architectures

Converged Plantwide Ethernet (CPwE) Best Practices

Converged Plantwide Ethernet (CPwE) is a collection of architected, tested and validated designs. The testing and validation follow the Cisco Validated Design (CVD) and Cisco Reference Design (CRD) methodologies. CPwE is relevant to both operational technology (OT) and informational technology (IT) disciplines and consists of documented architectures, best practices, guidance and configuration settings to help industrial organizations and OEMs achieve the design and deployment of a scalable, reliable, secure and future-ready plant-wide or site-wide industrial network infrastructure.

CPwE’s proven designs can also help industrial organizations and OEMs reduce costs, speed deployment and lower risks around new technology implementations. CPwE, which emerged from the strategic alliance between Rockwell Automation and Cisco, leverages the combined experience of three industrial powerhouses – Rockwell Automation, Cisco and Panduit, combining this ecosystem’s strengths in industrial automation, communications and security.

Deploy CIP Security within a CPwE Architecture

Two men in a manufacturing setting, wearing hard hats, safety glasses, and manufacturing uniforms looking at a laptop together.

Technical Data

Deploy CIP Security within a CPwE Architecture

See our IEC 62443-based security architecture use cases for designing and deploying CIP Security™ technology across plant-wide or site-wide IACS applications.
