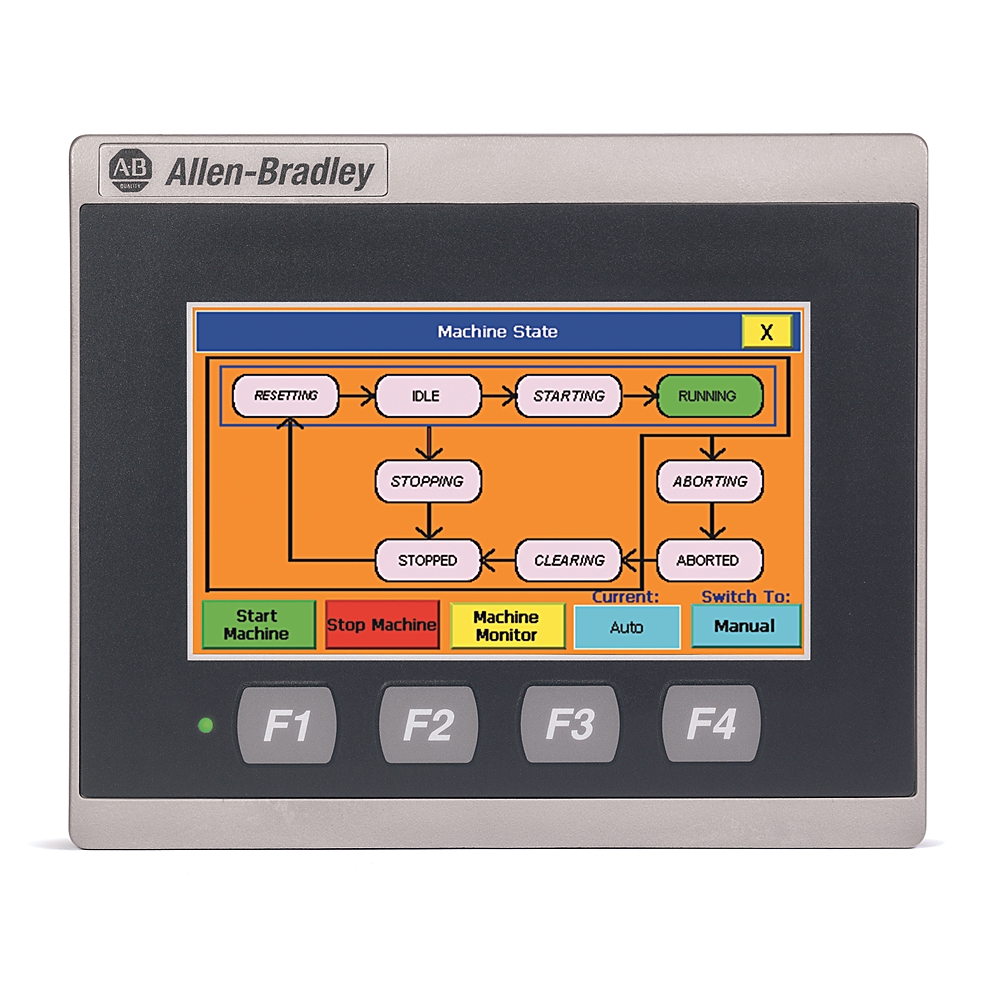

| Colors | 65K |
|---|---|
| Depth | 43mm |
| Display Type | TFT Color |
| Height | 116mm |
| Internal Memory | 128 MB |
| Power Consumption (max) | 9W |
| Resolution | 480 x 272 |
| Temperature Rating | 0…50 °C (32…122 °F) |
| Number of HW-interfaces industrial Ethernet | 1 None |
|---|---|
| Number of HW-interfaces RS-232 | 1 None |
| Number of HW-interfaces RS-422 | 1 None |
| Number of HW-interfaces RS-485 | 1 None |
| Number of HW-interfaces USB | 1 None |
| Number of password levels | 3 None |
| Number of grey-scales/blue-scales of display | 0 None |
| Number of system buttons | 0 None |
| Voltage type of supply voltage | DC |
| Number of function buttons, programmable | 4 None |
| Number of online languages | 8 None |
| Suitable for safety functions | False |
| Supporting protocol for TCP/IP | True |
| Supporting protocol for Modbus | True |
| Supporting protocol for Data-Highway | False |
| With colour display | True |
| Number of pixels, vertical | 272 None |
| With numeric keyboard | True |
| With alpha numeric keyboard | True |
| With message indication | True |
| With message system (incl. buffer and confirmation) | True |
| Process value representation (output) possible | True |
| Process default value (input) possible | True |
| With recipes | True |
| With printer output | True |
| Additional software components, loadable | True |
| Supporting protocol for EtherNet/IP | True |
| Screen diagonal | 4 in |
| Number of pixels, horizontal | 480 None |
| Useful project memory/user memory | 32000 mb |
| Supply voltage DC | 18 V |
| Touch technology | Resistive touch |
| Operator input | Analog touch and function keys |
| Power consumption | 9 W @ 24V DC @ 0.39A |
| Operating system | WINCE 6.0 |
| Backlight | Type: LED, Life: minimum 40000 hr |
| Software | Connected Components Workbench software, release 8.0 and later |
| Input voltage | 18...32V DC (24V DC nominal) |
| Number of HW-interfaces serial TTY | 0 None |
| Number of HW-interfaces parallel | 0 None |
| Number of HW-interfaces other | 0 None |
| Number of interfaces PROFINET | 0 None |
| Number of HW-interfaces Wireless | 0 None |
| Number of buttons with LED | 0 None |
| Supporting protocol for LON | False |
| Supporting protocol for ASI | False |
| Supporting protocol for PROFIBUS | False |
| Supporting protocol for CAN | False |
| Supporting protocol for INTERBUS | False |
| Supporting protocol for KNX | False |
| Supporting protocol for DeviceNet | False |
| Supporting protocol for SUCONET | False |
| Supporting protocol for other bus systems | False |
| Supporting protocol for SERCOS | False |
| Supporting protocol for INTERBUS-Safety | False |
| Radio standard Bluetooth | False |
| Radio standard Wi-Fi 802.11 | False |
| IO link master | False |
| Supporting protocol for AS-Interface Safety at Work | False |
| Supporting protocol for DeviceNet Safety | False |
| Supporting protocol for Foundation Fieldbus | False |
| Supporting protocol for PROFINET CBA | False |
| Supporting protocol for PROFINET IO | False |
| Supporting protocol for PROFIsafe | False |
| Supporting protocol for SafetyBUS p | False |
| Radio standard GPRS | False |
| Radio standard GSM | False |
| Radio standard UMTS | False |
| With SW interfaces | True |
| Type of display | TFT |
| Number of colours of the display | 1.67E7 None |
| Power supply | 24 V |
| North American temperature code | T4A |
| Real-time clock | True |
| CPU speed | 800 mhz |
| Flash memory (ROM), min | 256 mb |
| SDRAM (RAM), min | 256 mb |
| Recipe | 50 recipe files |
| Preferred controller | Micro800, MicroLogix |
| Battery lifespan, min | 5 yr @ 25 °C (77 °F) |
| External memory storage | USB port and micro-SD (secure digital) card - industrial grade micro-SD cards recommended, supports SDSC and class 6 & class 10 SDHC micro-SD cards, FAT32/16 formats, up to 32 GB maximum size |
| Built-in depth | 43 mm |
|---|---|
| Width of the front | 138 mm |
| Height of the front | 116 mm |
| Wall mounting/direct mounting | True |
| Mounted depth | 39 mm |
| Cutout dimensions, approx | Height: 99.0 ±0.5 mm (3.89 ±0.02 in) Width: 119.0 ±0.5 mm (4.68 ±0.02 in) |
| Rail mounting possible | False |
| Degree of protection (NEMA), front side | 4X |
|---|---|
| Degree of protection (IP), front side | IP65 |
| Operating temperature | 0 °C |
| Heat dissipation | 23 btu/hr |
| Shock | Operating: IEC 60068-2-27 (Test Ea, unpackaged shock):15 G |
| Vibration | IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz |
| Relative humidity | IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing |
| Temperature surrounding air | 50 °C |
| List of degrees of protection (NEMA), front side | NEMA/UL Type 4X (indoor) 12, 13 |
| Wiring category | 3-on power ports, 2-communication ports |
| ESD immunity | IEC 61000-4-2: 4 kV contact discharges, 8 kV air discharges |
| Conducted RF immunity | IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
| EFT/B immunity | IEC 61000-4-4, ±2kV @ 5kHz on power ports, ±1kV @ 5kHz on communication ports |
| Surge transient immunity | IEC 61000-4-5, ±500V line-line (DM) and ±500V line-earth (CM) on DC power ports, ±1 kV line-earth (CM) on communication ports |
| Nonoperating temperature | IEC 60068-2-1 (Test Ab, unpackaged nonoperating cold), IEC 60068-2-2 (Test Bb, unpackaged nonoperating dry heat), IEC 60068-2-14 (Test Na, unpackaged nonoperating thermal shock), -25...70 °C (-13...158 °F) |
| Radiated RF immunity | IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz, |
| Weight, approx | 0.333 g |
|---|---|
| Viewing area | Width: 95 mm (3.74 in), Height: 53.9 mm (2.12 in) |
| Wire type | Copper |
| Wire size | Input power terminal block, Stranded or solid, Cu 90 °C (194 °F), Single-wire gauge: 0.33...2.08 mm2 (22...14 AWG), Dual-wire gauge: 0.33...1.31 mm2 (22...16 AWG) |
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 7.62 |
| Lead Time | 13 |
| Dimension Width | 22.098 |
| Dimension Length | 24.13 |
| Stock Status | NON_STOCKED |
| Weight | 0.669 |
| Weight Unit | KG |
| Dimension Unit | CM |
| Drawings | |
|---|---|
| 3D STP Model (STEP) | Download (ZIP) |
| Product Drawing | Drawing (DWG) |
| Drawings |
|---|
| 3D STP Model (STEP) Download (ZIP) |
| Product Drawing Drawing (DWG) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Registrarse
| Tipo | Medio | Publicación |
|---|---|---|
| General | Product Cutsheet | -- |
| Installation Instructions | 2711r-in001_-en-p | 2711R-IN001 |
| User Manual | 2711r-um001_-en-e | 2711R-UM001 |
