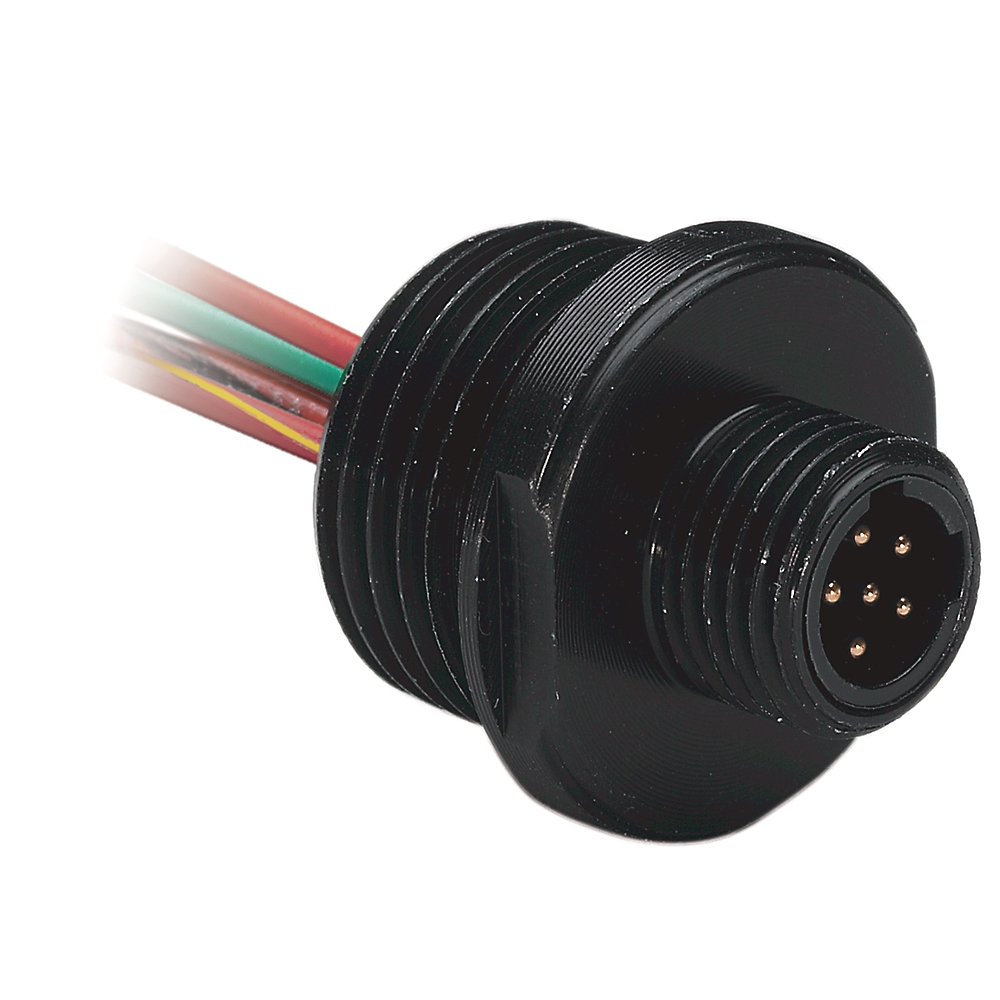

AC Micro (Dual Key) Receptacle
Catalog #: 888R-M6AC8-4N
Rockwell Automation announces that as of
August 15, 2024,
the AC Micro (Dual Key) Receptacle will be discontinued and no longer available
for sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
August 15, 2024
Replacement Category:
No planned RA replacement
Rockwell Automation announces that as of
August 15, 2024,
the AC Micro (Dual Key) Receptacle will be discontinued and no longer available for
sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
August 15, 2024
Replacement Category:
No planned RA replacement
| Housing Material | Standard Materials |
|---|---|
| Wire Size and Type | 22 AWG PVC |
| Type of mechanical accessory/spare part | Other |
|---|---|
| Panel mount thread size | M20 x 1.5 |
| Connector type | AC micro dual key |
| Connector insert material | Nylon |
| Number of pins | 6-pin |
| Receptacle shell material | Brass with nickel |
| Enclosure type rating | NEMA 1, 3, 4, 6P and IEC IP67, IP68, IP69K |
| Contact material | Gold-plated brass |
| Assembly rating | 250V @ 4A |
| Wire insulation | Oil-resistant PVC, 22 AWG stranded copper, 300V, UL recognized and CSA certified |
| Connector style | Straight male |
| Type of electrical accessory/spare part | Connecting cable |
|---|---|
| Wire size and type | 22 AWG, PVC |
| Color code | IEC or US or Auto |
| Conductor length | 0.1 m |
|---|
| Operating temperature | -40 °C |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 12.7 |
| Lead Time | 38 |
| Dimension Width | 2.489 |
| Dimension Length | 2.489 |
| Stock Status | NON_STOCKED |
| Weight | 22.68 |
| Weight Unit | G |
| Dimension Unit | CM |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Visit the Technical Documentation Center
Search the Literature Library
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Housing Material | Standard Materials |
|---|---|
| Wire Size and Type | 22 AWG PVC |
| Type of mechanical accessory/spare part | Other |
|---|---|
| Panel mount thread size | M20 x 1.5 |
| Connector type | AC micro dual key |
| Connector insert material | Nylon |
| Number of pins | 6-pin |
| Receptacle shell material | Brass with nickel |
| Enclosure type rating | NEMA 1, 3, 4, 6P and IEC IP67, IP68, IP69K |
| Contact material | Gold-plated brass |
| Assembly rating | 250V @ 4A |
| Wire insulation | Oil-resistant PVC, 22 AWG stranded copper, 300V, UL recognized and CSA certified |
| Connector style | Straight male |
| Type of electrical accessory/spare part | Connecting cable |
|---|---|
| Wire size and type | 22 AWG, PVC |
| Color code | IEC or US or Auto |
| Conductor length | 0.1 m |
|---|
| Operating temperature | -40 °C |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 12.7 |
| Lead Time | 38 |
| Dimension Width | 2.489 |
| Dimension Length | 2.489 |
| Stock Status | NON_STOCKED |
| Weight | 22.68 |
| Weight Unit | G |
| Dimension Unit | CM |
