800K Piezoelectric
Allen‑Bradley

Our Bulletin 800K Piezoelectric Push Buttons are available in 22.5 and 30.5 mm sizes.
Loading
  1. Product Selection
  2. Overview
  3. Documentation
Open All Close All
Product Selection Chevron DownChevron Down
Sort & Filter
CloseClose
Filter & Refine
Clear All
Sort By Chevron UpChevron Up
Chevron UpChevron Up
-
Size Chevron UpChevron Up
(11)
(3)
View 44 Results
Showing 1 - 24 of 44 Results
Sort By:
Best Match
  • Best Match
  • Alphabetical (A-Z)
  • Alphabetical (Z-A)
Filter & Refine
Best Selling
Chevron UpChevron Up
Product information Configure product Add to project
800K-22FMB24X10E100G 22.5 mm Piezo Push Button product image
800K-22FMB24X10E100G 22.5 mm Piezo Push Button
active
Product
800K Piezo Operators, 22.5 mm Operator Size, Flush, Momentary Operator Type, Blue, 24V DC, 1 N.O. Contact Block, Custom text - font size 12 pt
Chevron UpChevron Up
Product information Configure product Add to project
800K-22FMB24X10E100H 22.5 mm Piezo Push Button product image
800K-22FMB24X10E100H 22.5 mm Piezo Push Button
active
Product
800K Piezo Operators, 22.5 mm Operator Size, Flush, Momentary Operator Type, Blue, 24V DC, 1 N.O. Contact Block, Custom text - font size 16 pt
Chevron UpChevron Up
Product information Configure product Add to project
800K-22FMB24X10E100J 22.5 mm Piezo Push Button product image
800K-22FMB24X10E100J 22.5 mm Piezo Push Button
active
Product
800K Piezo Operators, 22.5 mm Operator Size, Flush, Momentary Operator Type, Blue, 24V DC, 1 N.O. Contact Block, Custom text - font size 20 pt
Chevron UpChevron Up
Product information Configure product Add to project

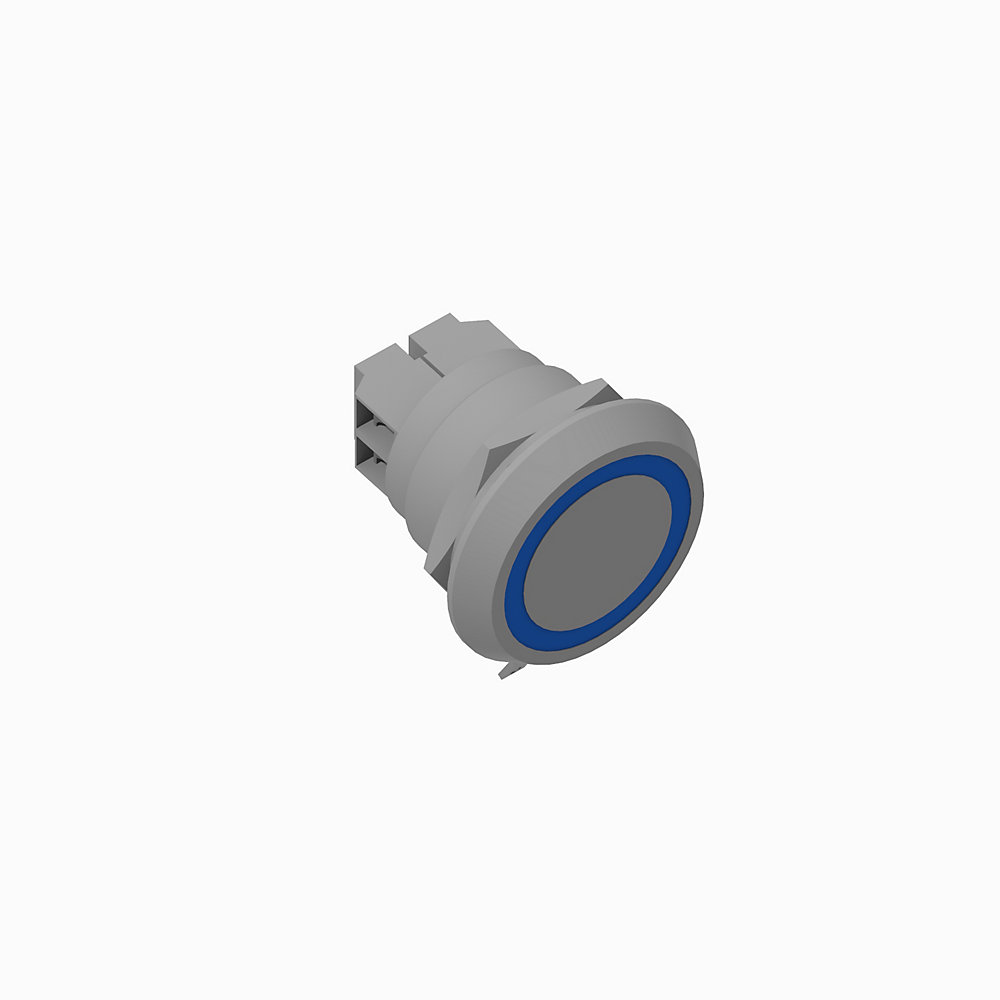

800K-22FMB24X10U100 22.5 mm Piezo Push Button product image
800K-22FMB24X10U100 22.5 mm Piezo Push Button
active
Product
800K Piezo Operators, 22.5 mm Operator Size, Flush, Momentary Operator Type, Blue, 24V DC, 1 N.O. Contact Block, Custom symbol
Chevron UpChevron Up
Product information Configure product Add to project
Best Selling
800K-22FMG24X10 22.5 mm Piezo Push Button product image
800K-22FMG24X10 22.5 mm Piezo Push Button
active
Product
800K Piezo Operators, 22.5 mm Operator Size, Flush, Momentary Operator Type, Green, 24V DC, 1 N.O. Contact Block, No Engraving
Chevron UpChevron Up
Product information Configure product Add to project
800K-22FMG24X10E100J 22.5 mm Piezo Push Button product image
800K-22FMG24X10E100J 22.5 mm Piezo Push Button
active
Product
800K Piezo Operators, 22.5 mm Operator Size, Flush, Momentary Operator Type, Green, 24V DC, 1 N.O. Contact Block, Custom text - font size 20 pt
Chevron UpChevron Up
Product information Configure product Add to project
800K-22FMG24X10U100 22.5mm Piezo Push Button product image
800K-22FMG24X10U100 22.5mm Piezo Push Button
active
Product
800K Piezo Operators, 22.5 mm Operator Size, Flush, Momentary Operator Type, Green, 24V DC, 1 N.O. Contact Block, Custom symbol
Chevron UpChevron Up
Product information Configure product Add to project
800K-22FMN24X10E100J 22.5 mm Piezo Push Button product image
800K-22FMN24X10E100J 22.5 mm Piezo Push Button
active
Product
800K Piezo Operators, 22.5 mm Operator Size, Flush, Momentary Operator Type, Non-illuminated, 24V DC, 1 N.O. Contact Block, Custom text - font size 20 pt
Chevron UpChevron Up
Product information Configure product Add to project
800K-22FMR24X01U100 22.5mm Piezo Push Button product image
800K-22FMR24X01U100 22.5mm Piezo Push Button
active
Product
800K Piezo Operators, 22.5 mm Operator Size, Flush, Momentary Operator Type, Red, 24V DC, 1 N.C. Contact Block, Custom symbol
Chevron UpChevron Up
Product information Configure product Add to project

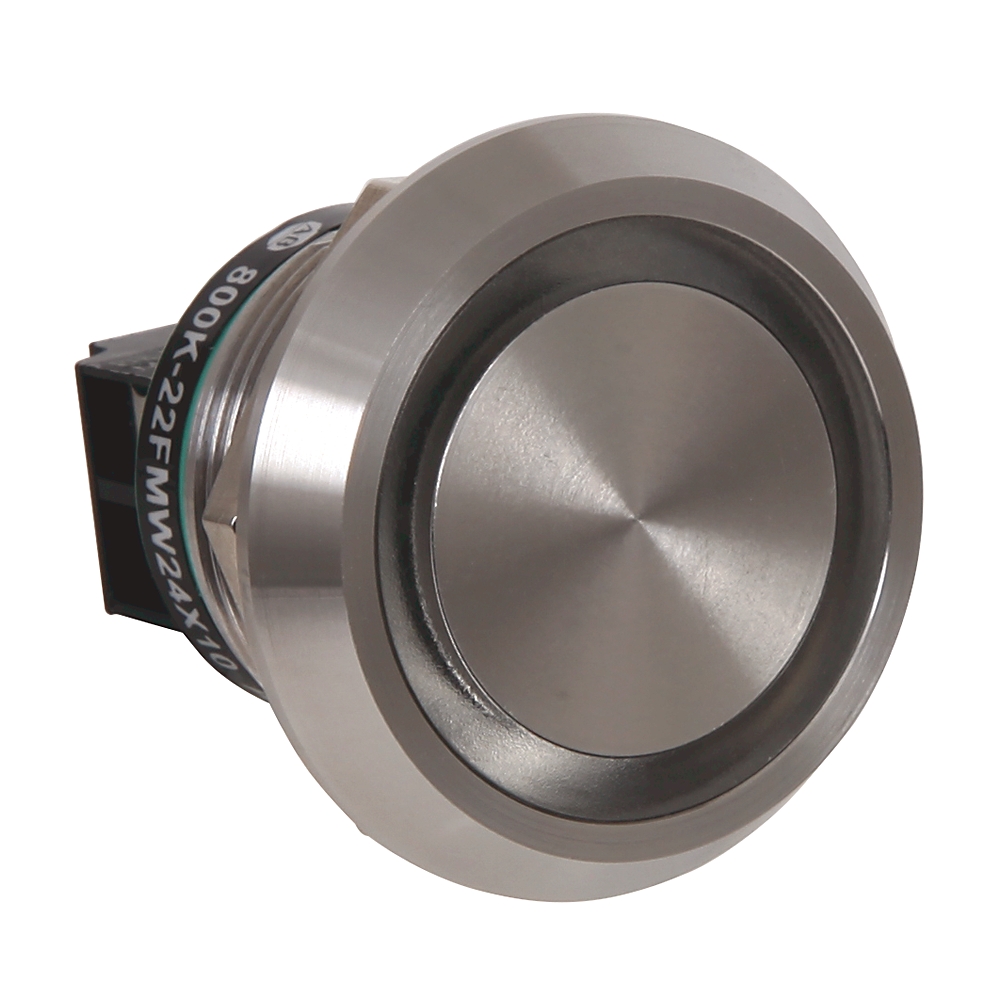

800K-22FMW24X10 22.5mm Piezo Push Button product image
800K-22FMW24X10 22.5mm Piezo Push Button
active
Product
800K Piezo Operators, 22.5 mm Operator Size, Flush, Momentary Operator Type, White, 24V DC, 1 N.O. Contact Block, No Engraving
Chevron UpChevron Up
Product information Configure product Add to project
800K-22FMW24X10E100J 22.5 mm Piezo Push Button product image
800K-22FMW24X10E100J 22.5 mm Piezo Push Button
active
Product
800K Piezo Operators, 22.5 mm Operator Size, Flush, Momentary Operator Type, White, 24V DC, 1 N.O. Contact Block, Custom text - font size 20 pt
Chevron UpChevron Up
Product information Configure product Add to project
800K-22FMW24X10U100 22.5mm Piezo Push Button product image
800K-22FMW24X10U100 22.5mm Piezo Push Button
active
Product
800K Piezo Operators, 22.5 mm Operator Size, Flush, Momentary Operator Type, White, 24V DC, 1 N.O. Contact Block, Custom symbol
Chevron UpChevron Up
Product information Configure product Add to project

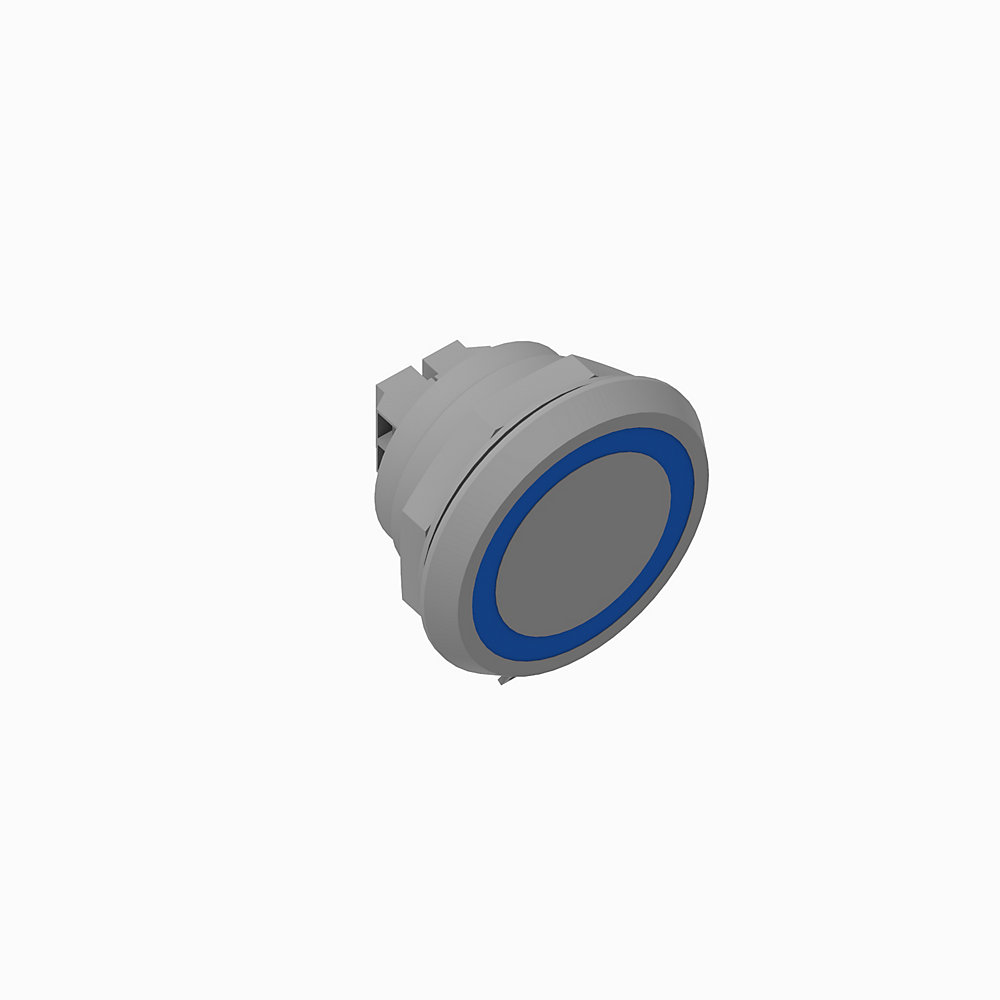

800K-30FMB24X10 30.5 mm Piezo Push Button product image
800K-30FMB24X10 30.5 mm Piezo Push Button
active
Product
800K Piezo Operators, 30.5 mm Operator Size, Flush, Momentary Operator Type, Blue, 24V DC, 1 N.O. Contact Block, No Engraving
Chevron UpChevron Up
Product information Configure product Add to project
800K-30FMB24X10U100 30.5 mm Piezo Push Button product image
800K-30FMB24X10U100 30.5 mm Piezo Push Button
active
Product
800K Piezo Operators, 30.5 mm Operator Size, Flush, Momentary Operator Type, Blue, 24V DC, 1 N.O. Contact Block, Custom symbol
Chevron UpChevron Up
Product information Configure product Add to project

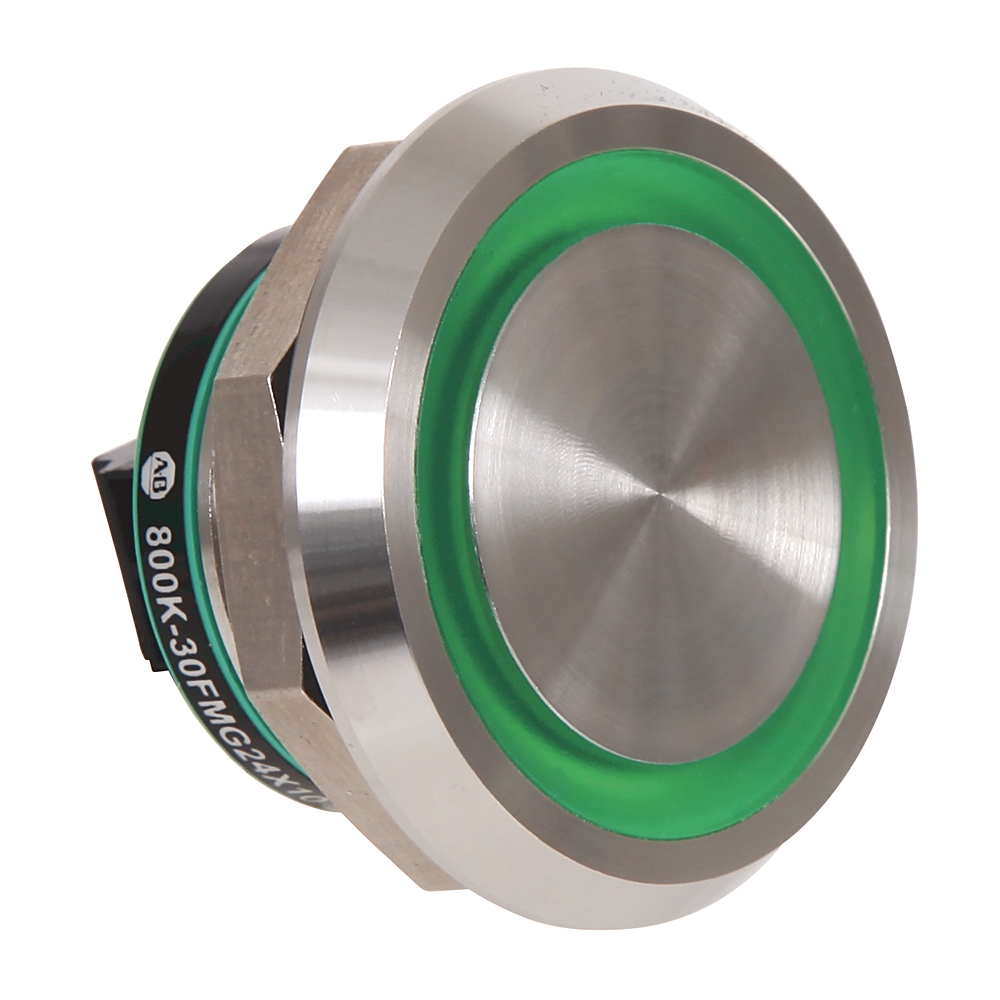

800K-30FMG24X10 30.5mm Piezo Push Button product image
800K-30FMG24X10 30.5mm Piezo Push Button
active
Product
800K Piezo Operators, 30.5 mm Operator Size, Flush, Momentary Operator Type, Green, 24V DC, 1 N.O. Contact Block, No Engraving
Chevron UpChevron Up
Product information Configure product Add to project
800K-30FMG24X10E100H 30.5mm Piezo Push Button product image
800K-30FMG24X10E100H 30.5mm Piezo Push Button
active
Product
800K Piezo Operators, 30.5 mm Operator Size, Flush, Momentary Operator Type, Green, 24V DC, 1 N.O. Contact Block, Custom text - font size 16 pt
Chevron UpChevron Up
Product information Configure product Add to project
800K-30FMG24X10E100J 30.5 mm Piezo Push Button product image
800K-30FMG24X10E100J 30.5 mm Piezo Push Button
active
Product
800K Piezo Operators, 30.5 mm Operator Size, Flush, Momentary Operator Type, Green, 24V DC, 1 N.O. Contact Block, Custom text - font size 20 pt
Chevron UpChevron Up
Product information Configure product Add to project
800K-30FMG24X10U100 30.5mm Piezo Push Button product image
800K-30FMG24X10U100 30.5mm Piezo Push Button
active
Product
800K Piezo Operators, 30.5 mm Operator Size, Flush, Momentary Operator Type, Green, 24V DC, 1 N.O. Contact Block, Custom symbol
Chevron UpChevron Up
Product information Configure product Add to project

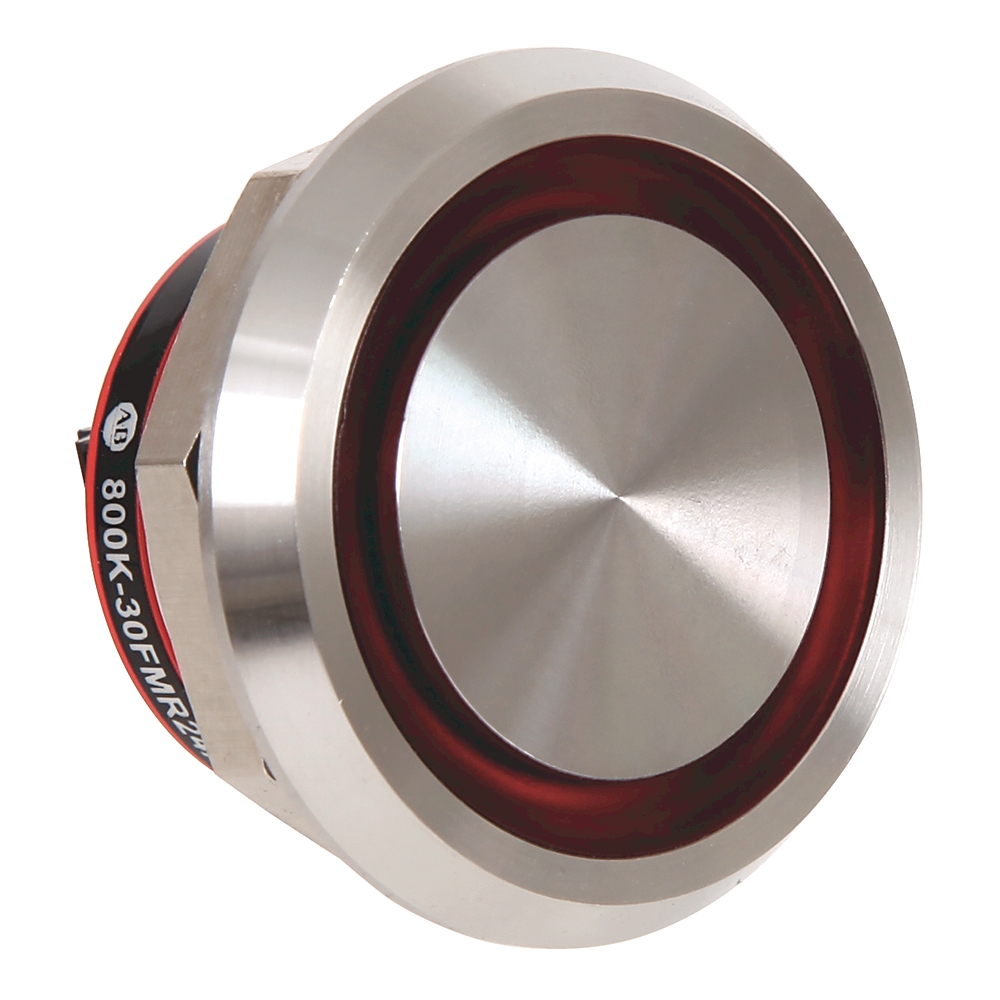

800K-30FMR24X01 30.5mm Piezo Push Button product image
800K-30FMR24X01 30.5mm Piezo Push Button
active
Product
800K Piezo Operators, 30.5 mm Operator Size, Flush, Momentary Operator Type, Red, 24V DC, 1 N.C. Contact Block, No Engraving
Chevron UpChevron Up
Product information Configure product Add to project
800K-30FMR24X01E100J 30.5 mm Piezo Push Button product image
800K-30FMR24X01E100J 30.5 mm Piezo Push Button
active
Product
800K Piezo Operators, 30.5 mm Operator Size, Flush, Momentary Operator Type, Red, 24V DC, 1 N.C. Contact Block, Custom text - font size 20 pt
Chevron UpChevron Up
Product information Configure product Add to project

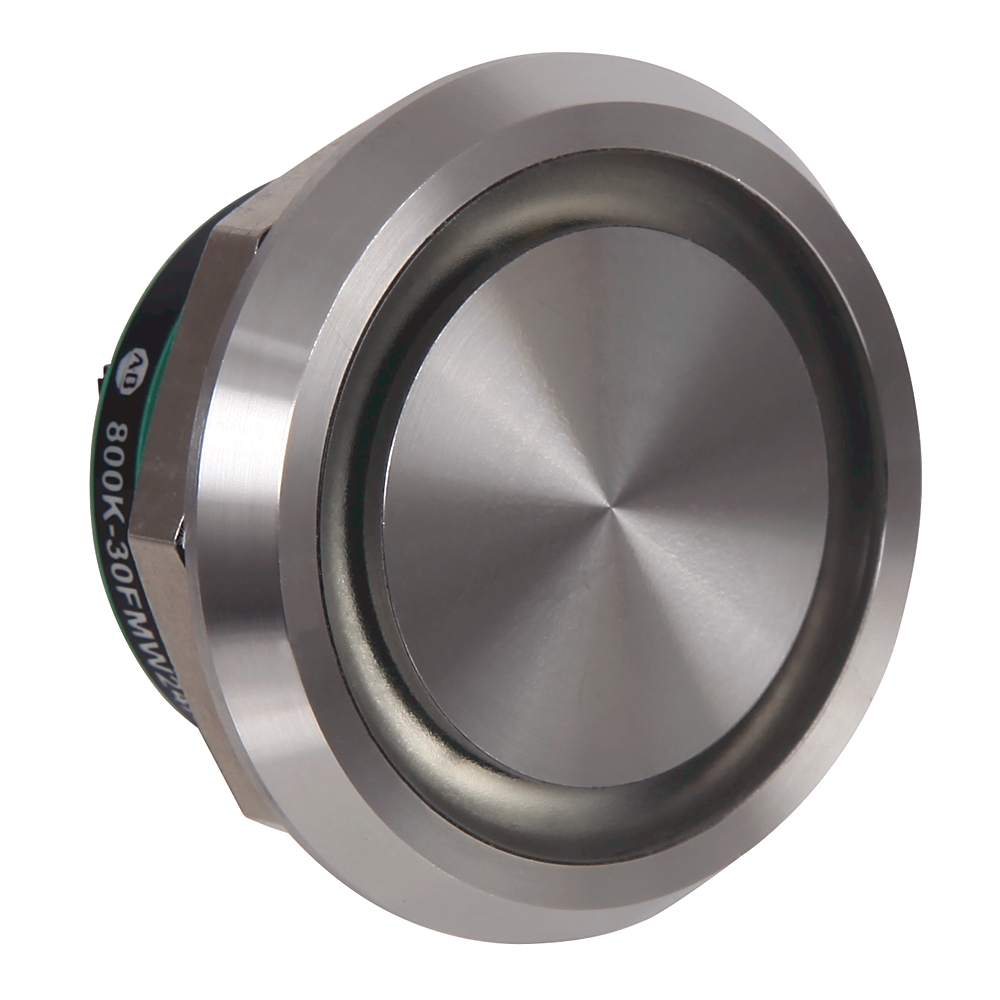

800K-30FMW24X10E100J 30.5 mm Piezo Push Button product image
800K-30FMW24X10E100J 30.5 mm Piezo Push Button
active
Product
800K Piezo Operators, 30.5 mm Operator Size, Flush, Momentary Operator Type, White, 24V DC, 1 N.O. Contact Block, Custom text - font size 20 pt
Chevron UpChevron Up
Product information Configure product Add to project
800K-22FMB24X10 22.5 mm Piezo Push Button product image
800K-22FMB24X10 22.5 mm Piezo Push Button
active
Product
800K Piezo Operators, 22.5 mm Operator Size, Flush, Momentary Operator Type, Blue, 24V DC, 1 N.O. Contact Block, No Engraving
Chevron UpChevron Up
Product information Configure product Add to project
800K-22FMG24X10E100G 22.5mm Piezo Push Button product image
800K-22FMG24X10E100G 22.5mm Piezo Push Button
active
Product
800K Piezo Operators, 22.5 mm Operator Size, Flush, Momentary Operator Type, Green, 24V DC, 1 N.O. Contact Block, Custom text - font size 12 pt
Chevron UpChevron Up
Product information Configure product Add to project

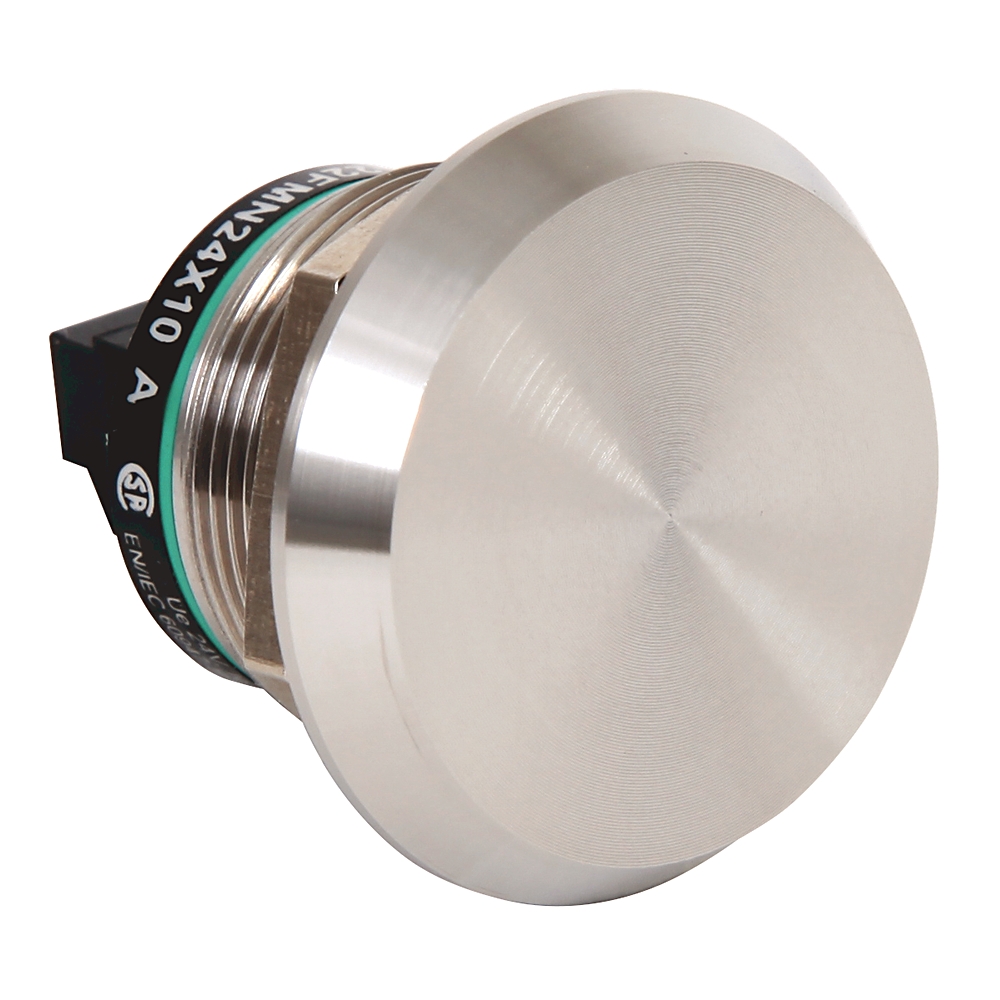

800K-22FMN24X10 22.5 mm Piezo Push Button product image
800K-22FMN24X10 22.5 mm Piezo Push Button
active
Product
800K Piezo Operators, 22.5 mm Operator Size, Flush, Momentary Operator Type, Non-illuminated, 24V DC, 1 N.O. Contact Block, No Engraving
Chevron UpChevron Up
Product information Configure product Add to project

Items Per Page:
24
  • 24
  • 48
  • 72
1 - 24 of 44 Results
CloseClose
Number of compared products:
0
CloseClose
CloseClose
CloseClose
CloseClose
Clear All
Compare Now (0)
Overview Chevron DownChevron Down
Allen Bradley

Our Bulletin 800K Piezoelectric Push Buttons are available in 22.5 and 30.5 mm sizes. These push buttons use a potted piezoelectric circuit in an SAE grade 316 stainless-steel body to achieve an IP69K rating. The piezoelectric circuit detects pressure on the surface of the button to provide a momentary actuation signal with no moving parts.

  • Minimizes production loss due to cleaning procedures
  • Minimizes frequent replacement due to corrosion
  • Minimizes bacteria growth potential from crevices
  • Includes UL Certified product for industrial panel
  • Offers custom laser engraving

Certifications
CSA MarkCanadian Standards Association Mark
UL MarkedUL Marked
  • CE
  • CSA
  • EN/IEC 60947-1
  • RoHS
  • UL

Standards Compliance

  • CSA C22.2 No. 14-05
  • DIN 40050-9
  • EN IEC 60947-1
  • EN IEC 60947-5-1
  • IEC 60529
  • UL508

Certifications apply when product is marked. See our Product Certification site for Declarations of Conformity, certificates and other certification details.

You may also be interested in

Loading
Loading
Loading
Loading
Documentation Chevron DownChevron Down
Product Profiles Publication
Bulletin 800K Piezoelectric Push Buttons Product Profile 800K-PP001_-EN-P
